600V 1000V LV Low Voltage Cable For Underground , Low Voltage Electrical Wire

Brand Name : Zhongdong

Certification : IEC,CE,CCC,ISO

Place of Origin : Hebei，China

MOQ : Negotiable

Price : Negotiable

Payment Terms : ,L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 7-30 days based on different Qty

Packaging Details : Iron-wooden Drum or Whole Wooden Drum

Voltage : 600V, 1000V

Standard : IEC60502-1

Feature : LSZH

conductor : Copper or Aluminium

Type : XLPE insulated, PVC sheath, PVC Jacket

Armour : Steel Wire

Contact Now

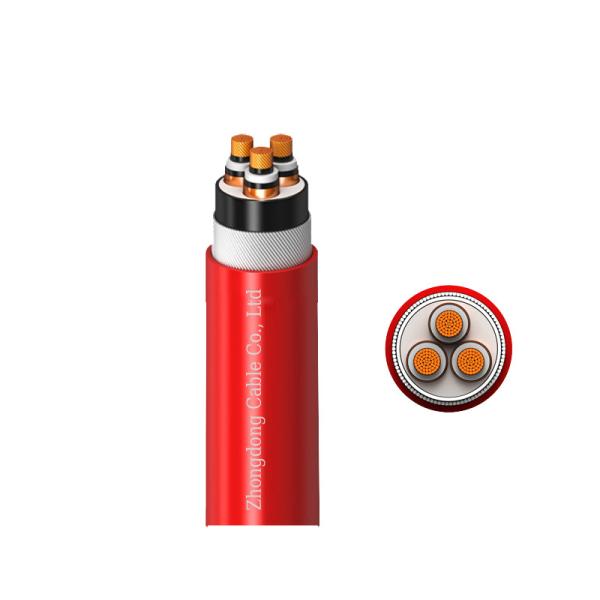

0.6/1kv LV Low Voltage Cable for Underground Use CU/XLPE/SWA/PVC

‌Application

Suitable for use in power distribution lines with rated voltage 0.6/1KV. For laying in shaft, water underground and large difference of level, able to bear external mechanical pressure and moderate pulling force.

Construction

  1. Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
  2. Insulation:XLPE
  3. Filler: Non-hygroscopic material
  4. Inner sheath: PVC
  5. Armouring: Steel Wire
  6. Outer Sheath PVC

Specification

Specification

Outer diameter of conductor

Nominal sheath thickness

Approx. outer diameter of cable

Approx. weight of cable

mm2

mm

mm

mm

kg/km

3X4 RE

2.24

1.8

17.1

621

3X6 RE

2.76

1.8

17.8

700

3X10 CC

3.8

1.8

19.5

885

3X16 CC

4.8

1.8

21.5

1141

3X25 CC

6

1.8

26.6

1670

3X35 CC

7

1.8

28.8

2033

3X50 SM

8

1.8

31.8

2513

3X70 SM

9.5

2

36.1

3502

3X95 SM

11

2.2

39.4

4392

3X120 SM

12.4

2.3

42.4

5258

3X150 SM

13.8

2.4

46.9

6706

3X185 SM

15.4

2.6

51.5

8104

3X240 SM

17.5

2.7

56.1

10062

3X300 SM

19.6

2.9

60.6

12082
