Medium Voltage 8.7/15KV PVC Insulated Power Cable Three Core Underground Cable Unarmoured
Application
Internal wring or external interconnection of electronic equipment.
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded copper or aluminum
- Insulation:PVC
- Filler: Non-hygroscopic material
- Inner sheath:PVC
- Outer sheath:PVC
Specification
| Specification | Outer diameter | Approx. outer diameter of cable | Approx. weight of cable | Max. D.C. resistance of conductor at 20℃ |
| mm2 | mm | mm | kg/km | Ω/km |
| | | | Cu | Al | Cu | Al |
| 3×25 | 6 | 45.3 | 2214.6 | 1748.3 | 0.727 | 1.2 |
| 3×35 | 7 | 47.7 | 2636.5 | 1983.7 | 0.524 | 0.868 |
| 3×50 | 8.4 | 50.9 | 3234.8 | 2302.1 | 0.387 | 0.641 |
| 3×70 | 10 | 54.5 | 3993.4 | 2687.6 | 0.268 | 0.443 |
| 3×95 | 11.5 | 58 | 4905.1 | 3133 | 0.193 | 0.32 |
| 3×120 | 13 | 61.4 | 5786.1 | 3547.7 | 0.153 | 0.253 |
| 3×150 | 14.5 | 64.9 | 6837.6 | 4039.5 | 0.124 | 0.206 |
| 3×185 | 16.2 | 68.8 | 8030.1 | 4579.1 | 0.0991 | 0.164 |
| 3×240 | 18.4 | 73.9 | 9860.1 | 5383.2 | 0.0754 | 0.125 |
| 3×300 | 20.5 | 78.7 | 11803.9 | 6207.8 | 0.0601 | 0.1 |
| 3×400 | 23.5 | 85.6 | 14939 | 7477.4 | 0.047 | 0.0778 |
| 3×500 | 26.5 | 92.9 | 18295.6 | 9144.2 | 0.0366 | 0.0605 |

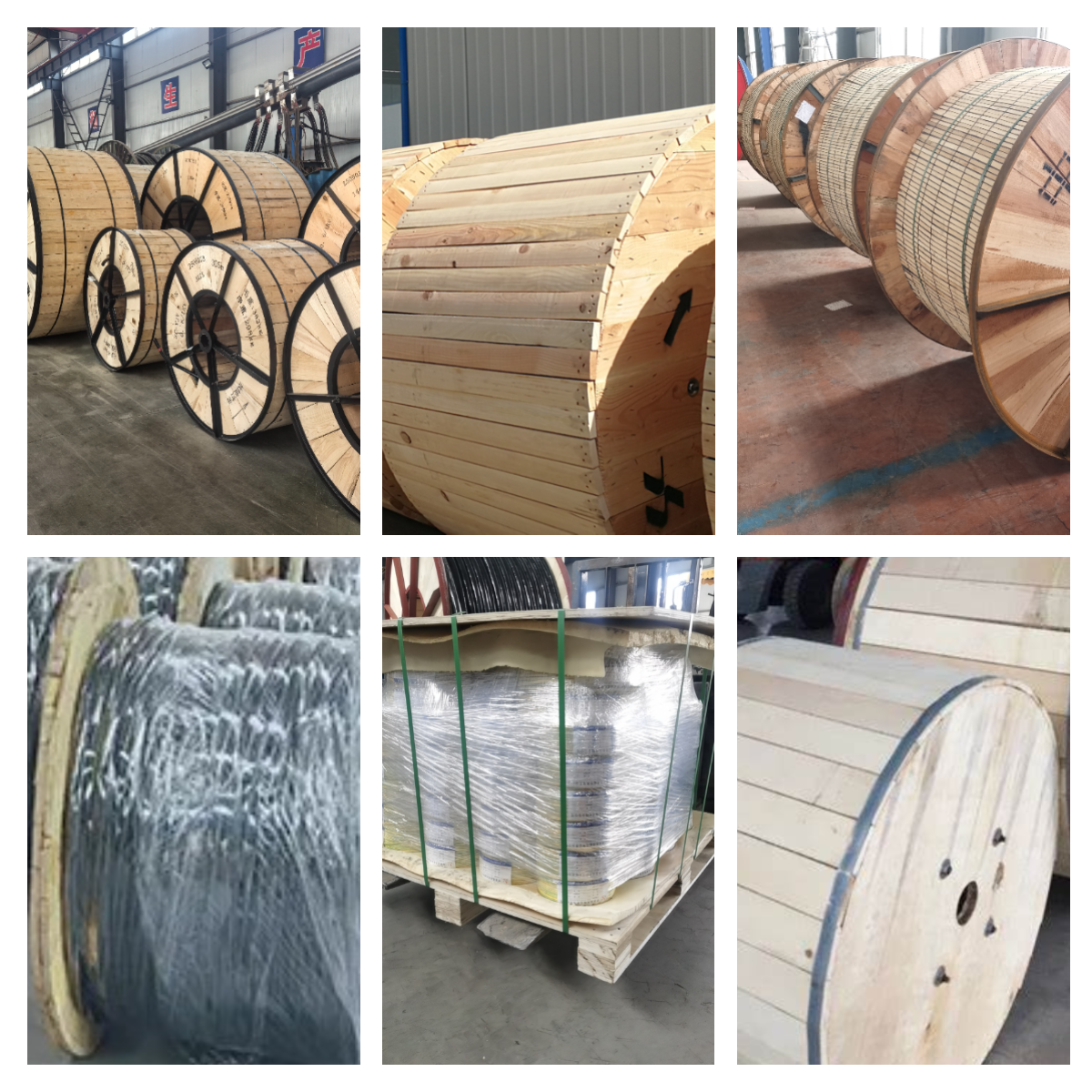

Packaging
FAQ
1.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Power Cable, Control Cable, Solar Wire Cable, Electrical Wire, Rubber Cable
3. why should you buy from us not from other suppliers?
The company has obtained ISO9001 international quality system certification, national industrial production license, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system certification.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
