11KV 22KV 33KV Medium Voltage Cable XLPE/Vinyl/Cu 3 Core
Application

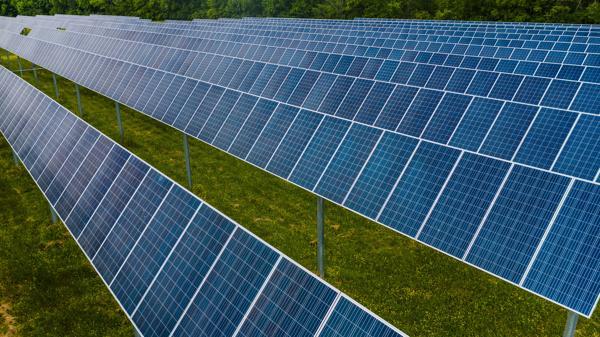

1. Industrial power distribution: factory power supply, mining and petrochemical industry
2. Construction and infrastructure: commercial buildings, subways and tunnels

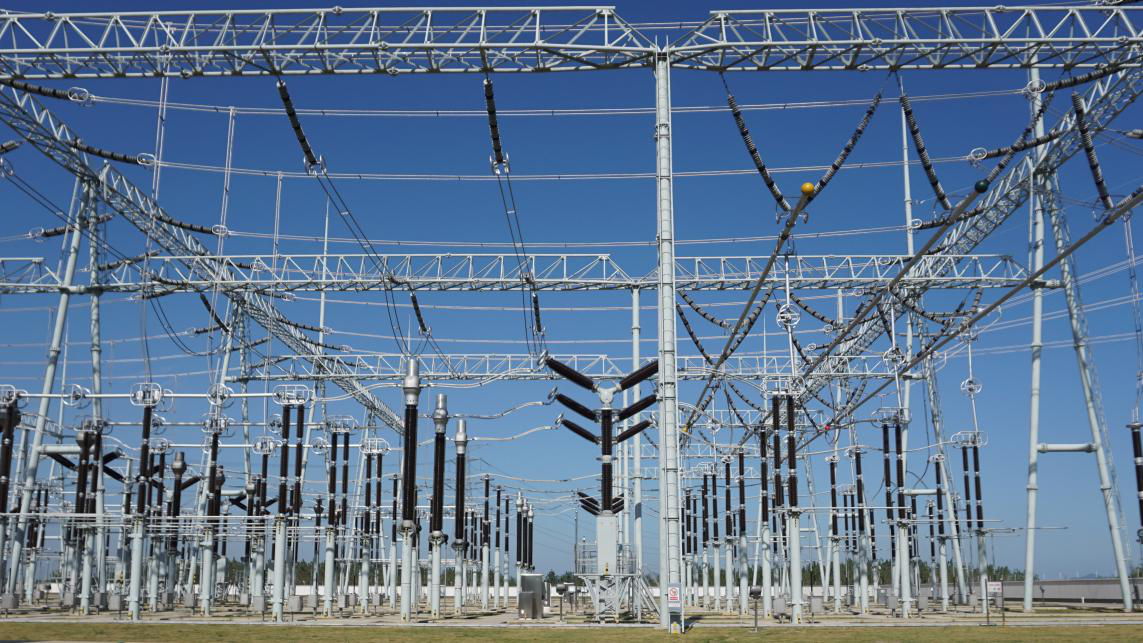

3. Energy and power transmission: substation connection, new energy projects
4. Underground and submarine laying: underground cable engineering, submarine cable
Construction
- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper Wire
- Binder tape: non-hygroscopic material
- Inner covering(bedding): PVC(Vinyl)
Specification
| Specs
mm² | Conductor diameter
mm | Nominal thickness of insulation
mm | Outside diameter of insulation
±1.0mm | Nominal thickness of sheath
mm | Approximate outer diameter of cable
mm | Approximate cable weight
kg/km |
| 3×25 | 6.0 | 4.5 | 17.0 | 2.4 | 47.0 | 2274 |
| 3×35 | 7.0 | 4.5 | 18.0 | 2.5 | 49.5 | 2673 |
| 3×50 | 8.2 | 4.5 | 19.2 | 2.6 | 52.3 | 3156 |
| 3×70 | 10.0 | 4.5 | 20.8 | 2.7 | 55.9 | 3932 |
| 3×95 | 11.6 | 4.5 | 22.6 | 2.8 | 60.0 | 4879 |
| 3×120 | 13.0 | 4.5 | 24.0 | 2.9 | 63.2 | 5743 |
| 3×150 | 14.4 | 4.5 | 25.4 | 3.0 | 66.5 | 6700 |
| 3×185 | 16.1 | 4.5 | 27.2 | 3.1 | 70.6 | 7919 |
| 3×240 | 18.4 | 4.5 | 29.4 | 3.3 | 75.7 | 9782 |
| 3×300 | 20.6 | 4.5 | 31.6 | 3.4 | 80.7 | 11755 |
| 3×400 | 23.4 | 4.5 | 34.4 | 3.7 | 87.4 | 14550 |
| 3×500 | 26.6 | 4.5 | 38.5 | 3.8 | 97.3 | 18348 |
| 3×630 | 30.0 | 4.5 | 41.9 | 4.1 | 105.3 | 22765 |
| Specs
mm² | Maximum Loading Capacity
m |
| 2m
(200kg) | 2.2 m
(220kg) | 2.4 m
(240kg) | 2.5m
(260kg) | 2.6 m
(280kg) | 2.8m
(300kg) | 3m
(360kg) | 3.15m
(400kg) |
| 3×25 | 801 | 927 | 1237 | 1425 | 1500 | 1913 | 2243 | 2670 |
| 3×35 | 775 | 428 | 486 | 549 | 579 | 824 | 954 | 1048 |
| 3×50 | 631 | 738 | 1010 | 1173 | 1235 | 1540 | 1814 | 2117 |
| 3×70 | 610 | 598 | 840 | 935 | 985 | 1312 | 1476 | 1800 |
| 3×95 | 457 | 573 | 646 | 596 | 806 | 1047 | 1173 | 1698 |
| 3×120 | 436 | 448 | 616 | 733 | 773 | 1007 | 1133 | 1354 |
| 3×150 | 351 | 423 | 514 | 578 | 610 | 817 | 1092 | 1311 |
| 3×185 | - | 318 | 489 | 552 | 582 | 783 | 874 | 1058 |
| 3×240 | - | 323 | 464 | 526 | 554 | 618 | 842 | 978 |
| 3×300 | - | - | 348 | 397 | 419 | 588 | 613 | 943 |
| 3×400 | | | | 375 | 396 | 446 | 585 | 693 |
| 3×500 | - | - | - | - | - | 424 | 401 | 667 |
| 3×630 | - | - | - | - | - | | 377 | 458 |
FAQ
1. Q: What international standards do your cables comply with?
A: Our cables meet IEC (International Electrotechnical Commission), BS (British Standards), UL (Underwriters Laboratories), and ASTM (American Society for Testing and Materials). Specific certifications (e.g., CE, RoHS) are available upon request.
2. Q: What conductor materials do you offer?
A: We provide copper (Cu) for high conductivity and aluminum (Al) for cost-sensitive projects.
3. Q: Can you customize cable length, color, or markings?
A: Yes. Custom lengths (e.g., drums, reels), color-coding, and surface printing (voltage, brand) are available.
4. Q: What packaging options do you provide?
A: Standard packaging includes wooden drums or steel reels with waterproof wrapping. Anti-rust treatments are applied for sea freight.

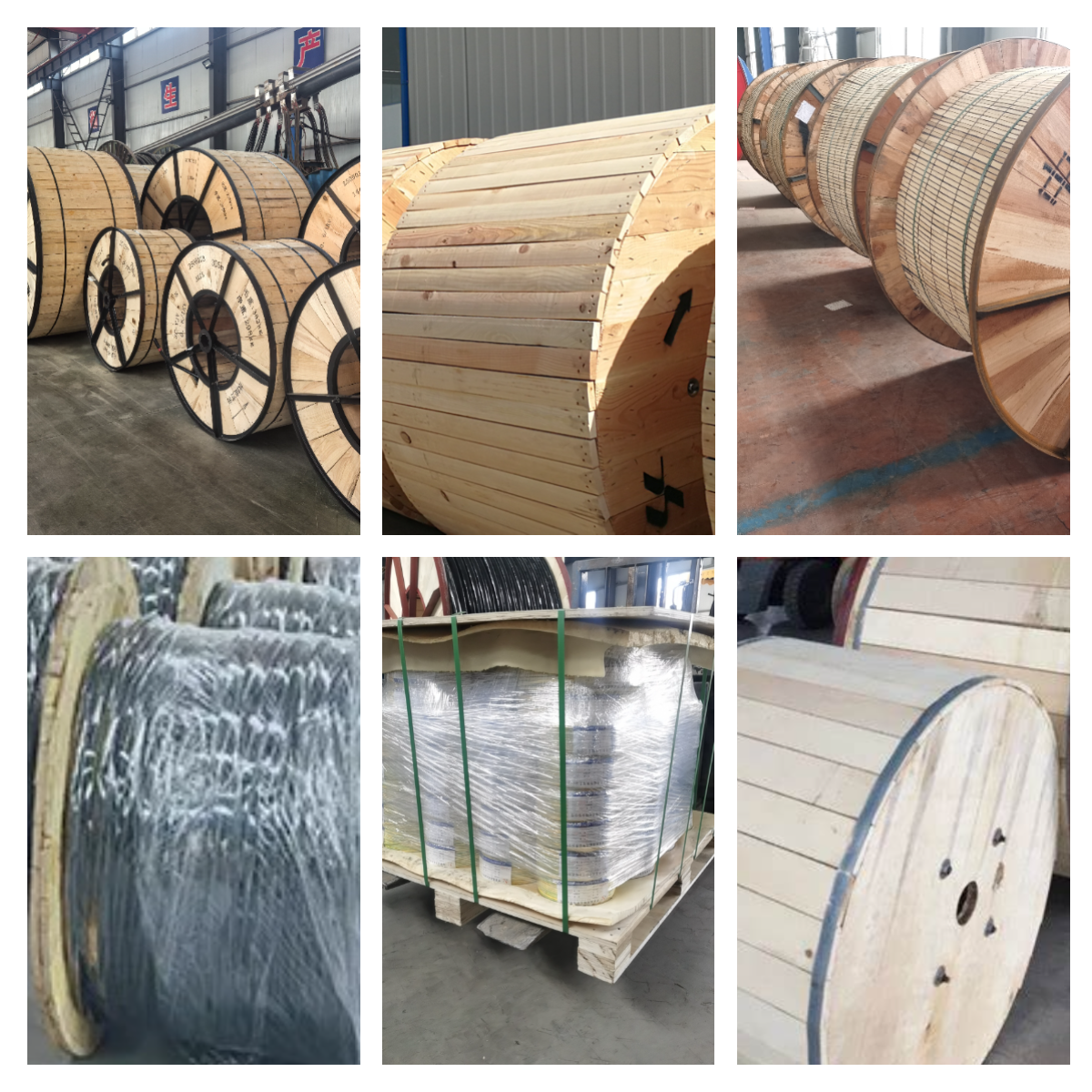

Logistics and packaging
